¶ Delta T
This section displays the length average temperature change for the string and volume average temperature change for the annuli between initial and final thermal conditions specified for all strings and annuli in the wellbore.
The initial condition defaults to the Undisturbed Temperature and the final condition to the thermal operation selected in the thermal simulations list. User can select and change the initial and final conditions from the drop down menu. The drop down list will contain all the calculated thermal operations and undisturbed condition.
Top depth is defaulted to hangar depth and the user can override it.

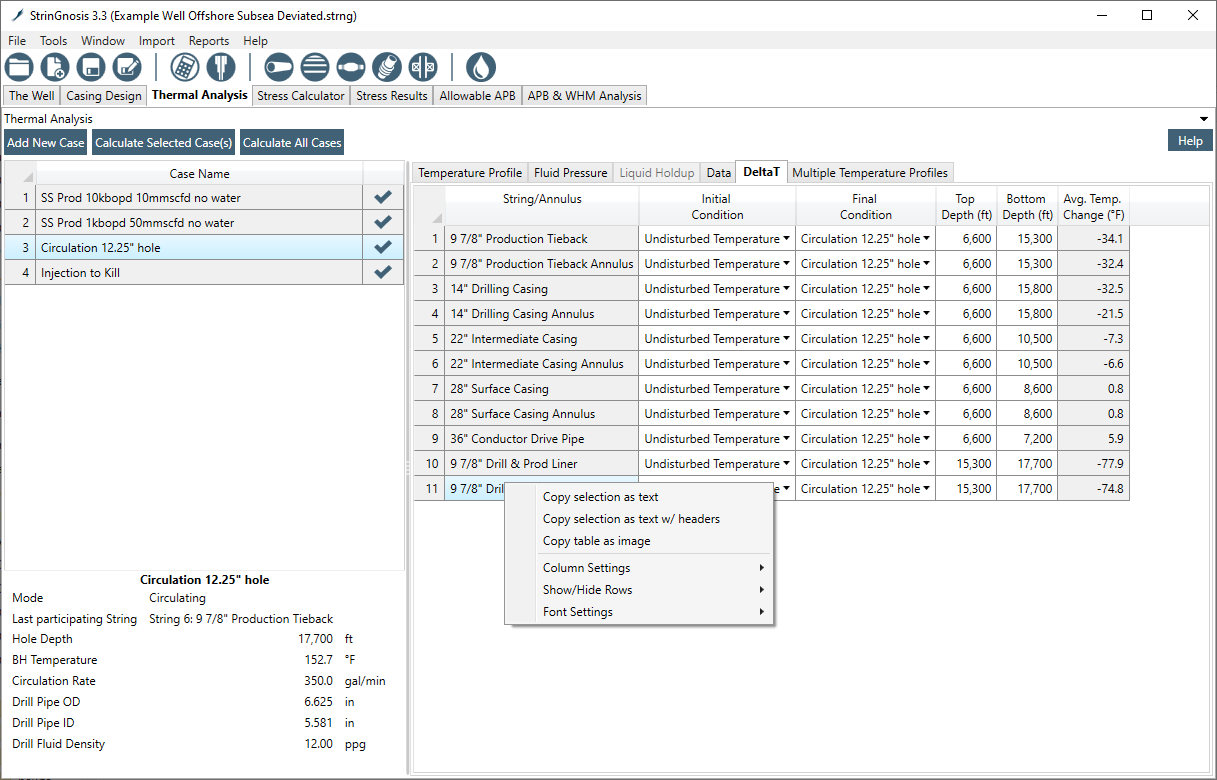

Bottom depth is defaulted to TOC and the user can override bottom depth also. Figure shows temperature change in strings and annuli when temperature changes from undisturbed to a production load case scenario.
¶ Right-Click Options
- Copy Selection as Text (CTRL+C): Places the highlighted cell(s) onto the clipboard so they can be pasted into another document as text/li>
- Copy Table (w/Headers): Places the entire table onto the clipboard so it can be pasted into another document as text. If pasted into MS , the data and headers are pasted as Unformatted Unicode Text. If pasted into MS , the data and headers are pasted directly into cells on the worksheet
- Copy Table as Image: Places the Table onto the clipboard so they can be pasted into another document as image
- Column Settings: Opens a Thermal Data dialog box where the user can select any number of columns desired for display in the table
- Show/Hide Rows: Add or remove string/annulus rows from view
- Font Settings: Lets user to change font type and size
These options are described in detail in the Working with Tables section.
